When setting up a paper container production line, one of the first decisions buyers face is whether they need a paper bucket machine or a paper cup machine – or possibly both. While both produce food-grade paper containers from PE- or PLA-coated paper, they serve fundamentally different market segments. The short answer: paper cup machines are optimized for high-volume production of small to medium beverage cups, while paper bucket machines are designed for larger-capacity food containers like KFC family meal buckets and popcorn tubs. The differences go deeper than size, touching on forming technology, speed, mold design, and application scenarios.
This is the most visible difference.
Based on the specifications from the DISCOVER product pages:
• Paper cup machines typically produce containers in the 2oz to 24oz range. Common applications include coffee cups, tea cups, cold drink cups, and small food containers. The paper weight range is 210-350 gsm.
• Paper bucket machines produce much larger containers – the DISCOVER page specifies a capacity of up to 10 liters, with a maximum top diameter of 230mm. The page mentions KFC family meal buckets and popcorn buckets as typical applications. The paper weight range is also 210-350 gsm.
If your product line is primarily beverage cups under 24oz, a cup machine is the obvious choice. If you're targeting large food containers – fried chicken family buckets, large popcorn tubs, ice cream tubs – you need a bucket machine.
Larger containers take longer to form, which directly affects output speed.
From the DISCOVER specifications:
• Paper cup machines: The KSJ-160 model reaches 140-160 pcs/min, the ZSJ-III reaches 90-110 pcs/min, and the high-speed models range from 80-120 pcs/min depending on cup size.
• Paper bucket machines: The FTJ-IV intelligent rectangular machine produces 55-65 pcs/min, while the ZTJ-III medium-speed model produces 35-45 pcs/min.
The speed difference is inherent to the product, not a machine quality issue. A larger forming area requires longer heating and sealing time per cycle. Buyers evaluating output should compare machines within the same category – don't expect a bucket machine producing 10L containers to match the speed of a cup machine making 8oz cups.
Both machine types share some core technologies but diverge in key areas.
Shared technologies (appearing in both DISCOVER product lines):
• Open-type cam drive system
• Gear transmission for stable power output
• Leister bottom heating with temperature control
• Automatic lubrication systems
Key differences in bucket machines:
The DISCOVER paper bucket machine advantage section highlights features specific to large-container forming:
• Integrated leaf mold frame – reduces the risk of mold loosening and misalignment when handling larger molds
• Single manipulator cup removal – described as providing quicker, more accurate removal of formed containers compared to multi-arm operations, reducing downtime
• Extrusion-based bottom forming technology – specifically designed to ensure strength and stability of the larger bottom surface required for buckets
The DISCOVER paper cup machine advantage section, by comparison, emphasizes:
• Integral main cup shape mould with three-holed robot arm for cup-catching
• Hard anodizing treatment on molds (surface hardness approximately HV500, thickness 25-250 microns)
• Open type cam drive with double longitudinal axis specifying ±0.005mm positioning accuracy
The single manipulator arm on the bucket machine is optimized for handling heavier, larger formed pieces, while the multi-arm system on cup machines prioritizes speed for smaller, lighter cups.

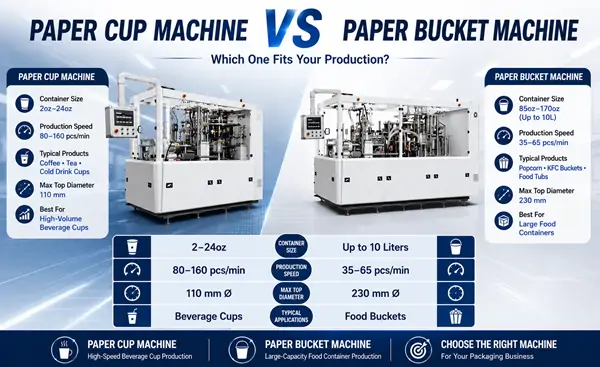

| Feature | Paper Cup Machine | Paper Bucket Machine |
|---|---|---|
| Typical applications | Coffee cups, tea cups, cold drink cups, food containers | KFC family buckets, popcorn buckets, large food containers |
| Container size range | 2oz – 24oz | Up to 10L (85OZ – 170OZ) |
| Max top diameter | 110mm (KSJ-120E) | 230mm (FTJ-IV) |
| Speed range | 80 – 160 pcs/min | 35 – 65 pcs/min |
| Paper weight | 210 – 350 gsm | 210 – 350 gsm |
| Paper coating | Single PE, double PE, PLA | Single PE, double PE |
| Cup/bucket shape | Round, rectangular options available | Round, rectangular, square options available |
| Bottom forming method | Bottom pressing and sealing with Leister heater | Extrusion-based bottom forming with Leister heater |
| Cup removal mechanism | Three-holed robot arm (multi-arm) | Single manipulator arm |
| Mold frame design | Integral main cup shape mould | Integrated leaf mold frame |
All data sourced from DISCOVER Machinery product pages. Actual performance depends on specific cup/bucket dimensions, paper material, and operating conditions.
The decision ultimately comes down to your product line, not machine specifications alone.
Choose a paper cup machine if:
• Your products are beverage cups in the 2oz to 24oz range
• You need high-volume output for coffee shops, tea houses, or QSR beverages
• You need frequent size changeovers for various drink sizes
If this describes your business, you can compare the available paper cup machine configurations to find a model suited to your production volume.
Choose a paper bucket machine if:
• Your products are large food containers, popcorn tubs, or family meal buckets
• Container capacity exceeds 24oz (up to 10 liters)
• Your customers are fried chicken chains, cinema concessions, or takeaway food businesses
• You need rectangular or square container shapes
Consider both machines if:
• You're a contract manufacturer serving diverse food packaging clients
• You want to offer a full range from espresso cups to family buckets
The DISCOVER case section provides concrete examples of paper bucket applications:
• KFC 10L Family Meal Bucket: Described as the largest paper container in both the Chinese and international market when it launched in late 2017. This application requires the high-capacity forming capability unique to bucket machines.
• Non-Round Paper Container: Specialized forming machines are needed for square-bottom, oval-bottom, and other non-round shapes, which the bucket machine line supports.
These examples illustrate that paper bucket machines serve a distinct niche that cup machines cannot fill – large-capacity, often uniquely shaped food containers for major QSR chains.
Q: Can a paper cup machine be modified to produce paper buckets?
A: Generally, no. Cup machines are designed for a specific size range (typically up to 24oz) and their mold frames, heating systems, and cup removal mechanisms are not sized for large containers. A bucket machine has a fundamentally different structural design to handle larger forming areas and heavier finished products.
Q: Why are paper bucket machines slower than paper cup machines?
A: Larger containers require more material and longer heating time per cycle. A 10L bucket has a much larger sidewall area and bottom surface than an 8oz cup, so the sealing and forming process naturally takes longer. This is a physical constraint, not a machine deficiency.
Q: Can I produce both round and rectangular containers on the same bucket machine?
A: The DISCOVER bucket machine line includes models specifically designed for rectangular shapes, such as the FTJ-IV. Changing between round and rectangular typically requires mold changes. Confirm the specific model's capabilities with the supplier.
Q: What paper types work for both cup and bucket machines?
A: Both machine types handle PE-coated and PLA-coated paper in the 210-350 gsm range. However, the specific paper weight you choose depends on the container size and rigidity requirements – larger buckets may need heavier paper to maintain structural integrity.
Q: Should I buy from a supplier that makes both machine types?
A: Working with a supplier that manufactures both categories can simplify procurement, training, and after-sales support. Common spare parts, similar control interfaces, and a single point of contact for technical service can reduce operational complexity if you operate both types of machines.
Paper cup machines and paper bucket machines serve complementary but distinct roles in food packaging production. Cup machines excel at high-volume, small-to-medium beverage container production, while bucket machines are purpose-built for large-capacity food containers that standard cup forming equipment cannot handle.
The choice between them is not about which machine is better, but about which container sizes and applications your business needs to serve. If you're expanding from beverage cups into large food containers, or entering the market for KFC-style family buckets, a dedicated paper bucket machine fills a production gap that cup equipment cannot cover.
If you're unsure which equipment fits your product line, contact DISCOVER to discuss your specific container requirements and get guidance on the right production setup.
