Automatic Embossing Outer Wrap Machine
WBJ-III

Automatic Embossing Outer Wrap Machine

Advanced Automation

Superior Build Quality

Energy-Efficient

This is a special designed outer wrap machine for combining an embossed outer wall to the normal inner cup for making a double wall cup.

  • Paper bowl size: 4-20 oz
  • Paper gram weight: 190-300gsm
  • Production speed: 70-80pcs/min
  • Paper type: Single PE or double PE



Optional functions
  • Flat Stick Outer Wall
  • Hollow Outer Wall
  • Corrugated Outer Wall
sign-6.webp sign-6-1.webp Request Quote

sign-7.webp sign-7-1.webp Product Comparison

General Description
WBJ-III Intelligent Indentation Paper Cup Double Wall Machine

Discover Machinery's is a trusted manufacturer of high-performance paper cup production equipment. Our WBJ-Ⅲ Intelligent Indentation paper cup double wall machine is designed to meet the growing demand for high-quality, insulated paper cups. With advanced automation, precision control, and an efficient production process, this machine is an ideal choice for businesses looking to enhance their cup manufacturing capabilities.

Integral Mould For Main Cup Shape

Gear Transmission

Open Cam Drive

The Whole Automatic Lubrication

The Whole Frame Design

upload/1c/202509/automatic-paper-cupbowl-outer-wrap-machine-2.jpg
Functions

Key Features of the WBJ-III Paper Tea Cup Making Machine

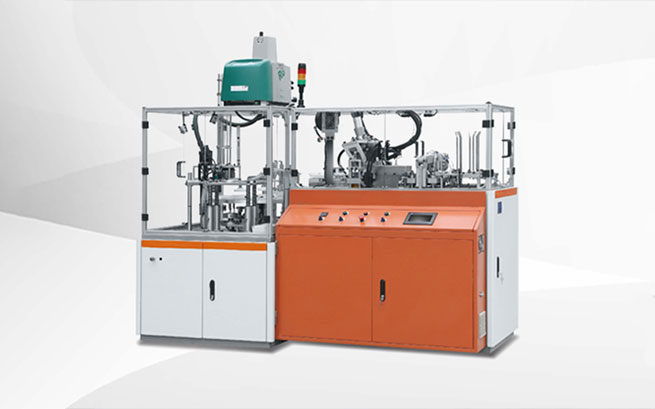

upload/1c/202507/automatic-embossing-outer-wrap-machine-001-1700.jpg
High-Efficiency Double Wall Paper Cup Production
The WBJ-III double wall paper cup machine is engineered for the seamless production of insulated cups with an outer sleeve. This extra layer improves heat retention and provides a comfortable grip, making it ideal for hot beverages. The machine integrates intelligent indentation technology to ensure a firm and consistent bonding of the outer sleeve, resulting in a premium-quality finished product.
Advanced Automation for Increased Productivity
Equipped with a fully automated feeding, sealing, and wrapping system, the WBJ-III enhances productivity while minimizing labor costs. The precision control system ensures accurate positioning and secure attachment of the double wall layer, reducing material waste and improving overall efficiency.
Superior Build Quality and Durability
As a leading manufacturer in China, Discover Machinery's prioritizes durability and reliability. The WBJ-III China double wall paper cup machine is built with high-quality components, ensuring stable performance over long production cycles. The robust frame and advanced safety features make it a dependable choice for continuous operation.
Intelligent Control System for Enhanced Accuracy
The machine features an advanced PLC control system with a user-friendly interface, allowing operators to easily monitor and adjust production parameters. This intelligent system ensures precise temperature control, smooth paper feeding, and consistent indentation, resulting in high-quality output with minimal defects.
Versatile Cup Size Adaptability
The WBJ-III paper cup double wall machine is highly adaptable, accommodating a variety of cup sizes and designs. Whether for coffee, tea, or specialty beverages, this machine offers the flexibility to meet different market demands without compromising efficiency.
Energy-Efficient and Environmentally Friendly
Designed with energy efficiency in mind, the WBJ-III double wall paper cup machine optimizes power consumption while maintaining high-speed operation. Additionally, it supports eco-friendly materials, making it an excellent choice for businesses focused on sustainable packaging solutions.
Control system
Equipped with an advanced PLC control system, operators can easily set various production parameters, such as production speed, outsourcing temperature, etc. through the operating interface. At the same time, the system also has fault diagnosis and alarm functions, which is convenient for timely discovery and resolution of problems.
Outsourcing mechanism
Including paper folding, pasting and other devices, which can accurately wrap embossed paper on paper containers such as paper cups in a preset way, and seal and fix them through heat sealing.
Paper feeding mechanism
High-precision paper feeding device is adopted to ensure that the paper is accurately and smoothly conveyed to each processing station, and the paper feeding speed can be automatically adjusted according to the set parameters to adapt to paper of different specifications and materials.
General Description

Cup sizes

4-20oz

Machine speed

70-100pcs/min

Machine net weight

3600kg

Power supply

380V

Rated power

5KW

Air consumption

0.4m³/min

Machine size

L2490mmxW1250mmxH1600mm

Paper grams

190-300gsm

Customers' Questions and Answers About Paper Cup Machine
What is the adaptability of the double-layer paper cup machine?

The double-layer paper cup machine has strong adaptability and can be customized according to different customers' production needs, supporting the production of paper cups in various specifications and designs.

What are the application areas of the double-layer paper cup machine?

The double-layer paper cup machine is not only suitable for traditional beverage packaging but also for various industries such as the food industry and fast-food packaging, particularly those requiring paper cups with strong insulation or leak-proof performance.

How is quality control managed for the double-layer paper cup machine?

The double-layer paper cup machine is equipped with a high-precision detection system that monitors cup quality in real-time during production, ensuring that each cup meets standards for dimensions, strength, sealing performance, and other key metrics.

What is the noise level of the equipment?

The double-layer paper cup machine employs an optimized transmission system and noise-reduction technology, resulting in extremely low noise levels during operation, providing a quieter working environment for production.

Does the double-layer paper cup machine support the production of paper cups made from different materials?

Yes, the double-layer paper cup machine supports the use of various materials, including standard paper, PE-coated paper, PLA-coated paper, etc. Production settings can be adjusted according to customer requirements to accommodate the production of multiple types of paper cups.

How long does it take to change molds on a double-layer paper cup machine?

The double-layer paper cup machine is equipped with a quick mold change design, resulting in shorter mold change times, typically completed within 30 minutes. This enables the production line to quickly switch between product types, enhancing flexibility and production efficiency.

How does the production efficiency of a double-layer paper cup machine compare to that of a single-layer paper cup machine?

The double-layer design not only enhances the durability and thermal insulation of the paper cups but also reduces production cycles by processing the inner and outer layers in parallel, thereby increasing overall production speed.
