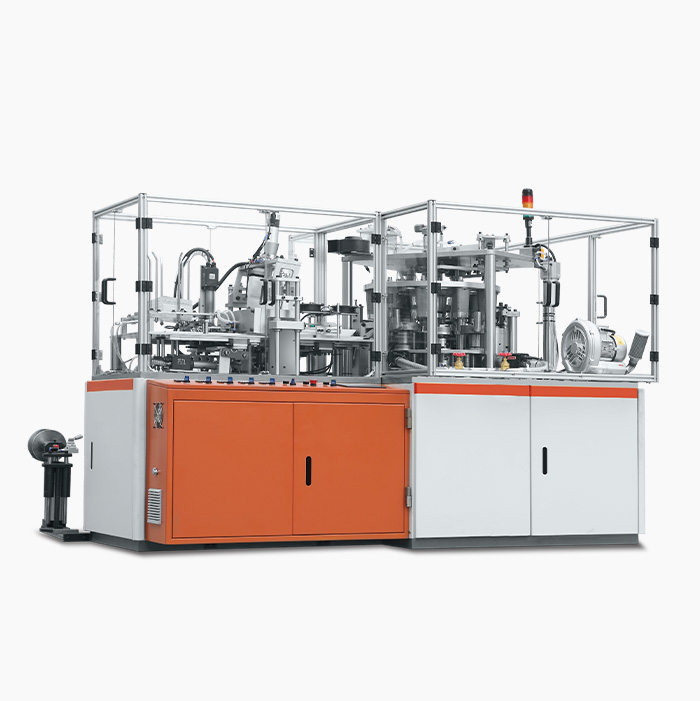

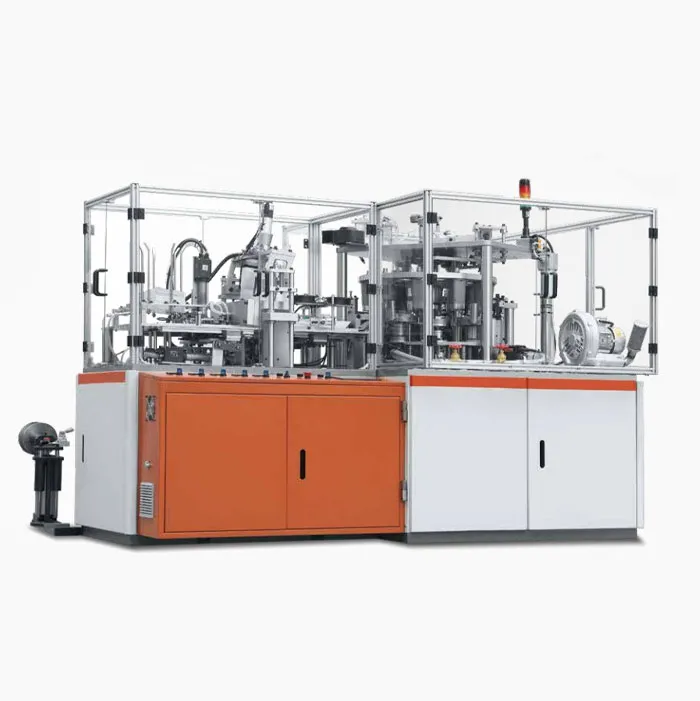

Automatic Medium Speed Rectangular Paper Cup Forming Machine p-c-2.webp
FBJ-III

Automatic Medium Speed Rectangular Paper Cup Forming Machine

High Efficiency

Cost-Effective

Fully Automated Operation

A special paper cup "square cup" professional manufacturing equipment. It is used to make unique cups with square bottom, square bottom and oval bottom. Leading technology: Integral hold-off formworks Single-manipulators Pickup cups Gears Open-end graduations Bottom leister Heating Integral rack design Extrusion bottom molding technology

  • Cup sizes: 6oz-28oz
  • Productlon speed: 80-90 pcs/min
  • Air consumption: 0.4 m³/min
  • Paper type: Single PE or double PE
Optional functions
  • Inspection
  • Paper Blank Feeder
Request Quote

Product Comparison

Download

General Description

FBJ-III  Paper Cup Making Machine Price

Discover Machinery's proudly presents the FBJ-III Paper Cup Making Machine, a high-efficiency solution designed for precision and reliability in paper cup production. This advanced machine integrates cutting-edge technology, ensuring seamless operation and superior cup quality for manufacturers seeking enhanced productivity.

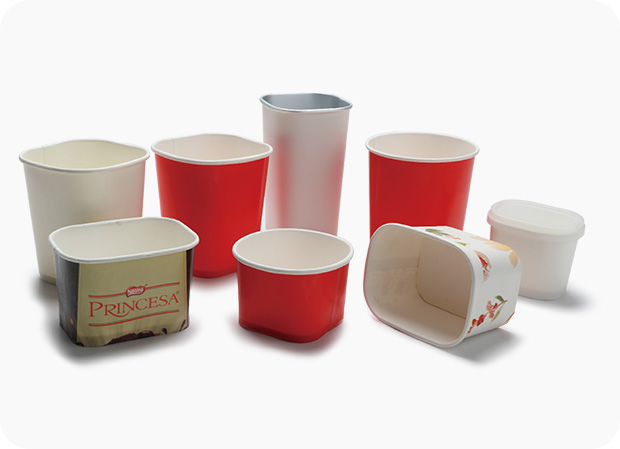

FBJ-III paper cup making machine is a special paper cup "square cup" professional manufacturing equipment. It is used to make several cups with unique shapes, such as square bottom round mouth, square bottom square mouth and oval bottom.

The maximum production speed of FBJ-III paper cup making machine is 80 paper cup per minute, it produces paper container in sizes ranging from 6 ounces to 28 ounces.

  • Integral Mould For Main Cup Shape
  • Catching The Cup By Three-holed Robot Arm
  • Gear Transmission
  • Open Cam Drive
  • Leister Heater On The Bottom
  • The Whole Automatic Lubrication
  • The Whole Frame Design
upload/1c/202509/automatic-medium-speed-rectangular-paper-cup-forming-machine-2.jpg

Parameters

Cup sizes 6oz-28oz (choose one type)
Applicable paper Single-sided and double-sided PE coated paper (Choose one type)
Paper grams PE18g/m²+base paper 210g/m²-
320g/m²+PE26g/m² (choose one type)
Machine speed 80-90 pcs/min
Power supply 4x380V 50HZ
Rated power 18KW
Air consumption 0.4 m³/min
Machine size L2440mmxW1680mmxH1700m
Machine net weight 4000 kg

Functions

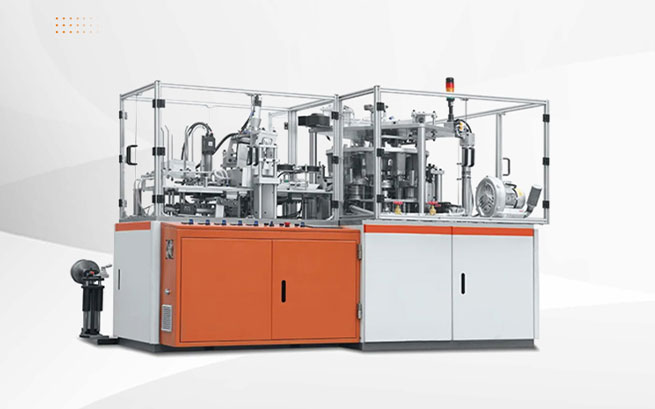

Core Selling Points of Automatic Medium Speed Rectangular Paper Cup Forming Machine

upload/1c/202507/automatic-medium-speed-rectangular-paper-cup-forming-machine-001.jpg
Control system
Operators can set various parameters such as production speed, temperature, pressure, etc. through the control panel. The control system can also monitor the running status of the machine in real time, and in case of failure, it can send out an alarm and display fault information in time, which is convenient for maintenance personnel to troubleshoot.
Crimping mold
It is used to curl the upper mouth of the paper cup. The shape and size of the crimping die need to match the mouth of the paper cup, and by applying pressure, the paper is rolled smoothly. The quality of these parts directly affects the curling effect of the mouth of the paper cup, such as the flatness and tightness of the curling.
Fan-shaped piece feeding
The paper feeding mechanism discharges the fan-shaped sheet on the paper supply holder through the suction cup, and the conveying mechanism then sends the fan-shaped sheet to the next process
High Efficiency and Precision Engineering
The FBJ-III Paper Cup Making Machine is engineered for medium-speed production, striking the perfect balance between speed and accuracy. Its fully automated process—from fan-shaped piece feeding to crimping, sealing, and stacking—ensures consistent output with minimal waste. This results in a high-performance system ideal for businesses aiming to optimize production efficiency.
Advanced Control System
Equipped with a user-friendly PLC control system, the machine ensures precise operation, real-time monitoring, and automatic fault detection. This reduces downtime and enhances productivity, making it an excellent investment for paper cup making machine manufacturers.
High-Quality Crimping and Sealing
A robust crimping mold guarantees strong, leak-proof cup rims, while an efficient sealing mechanism ensures durability. These features significantly enhance the overall cup strength, catering to the growing demand for premium paper cups.
Efficient Fan-Shaped Piece Feeding System
The automatic feeding mechanism ensures precise placement of paper blanks, reducing material waste and improving operational efficiency. This system supports various paper thicknesses, allowing flexibility for different production needs.
Versatile Cup Size Customization
Designed to accommodate multiple cup sizes, the machine allows manufacturers to produce a wide range of rectangular paper cups. This adaptability makes it a preferred choice for businesses looking to expand their product offerings.
Durable and Low-Maintenance Design
Manufactured with high-quality components, the FBJ-III ensures long-term durability with minimal maintenance. Its modular design allows for easy part replacements, reducing operational costs over time.
Competitive Paper Cup Making Machine Price
Investing in a high-performance paper cup machine is crucial for any business aiming for efficiency and quality. At Discover Machinery's, we offer competitive paper cup making machine price options tailored to different production needs. Our machines provide long-term cost savings by reducing material waste and increasing production output, making them a cost-effective choice for manufacturers.
Why Choose Discover Machinery's?

As one of the leading paper cup making machine manufacturers, Discover Machinery’s is committed to providing high-quality, precision-engineered solutions for the disposable cup industry. Our dedication to innovation, customer satisfaction, and reliable after-sales support ensures that our machines consistently meet the highest industry standards.

For businesses seeking a high-performance paper cup making machine, the FBJ-III  Paper Cup Making Machine offers the perfect combination of speed, accuracy, and cost-effectiveness. Contact us today to learn more about our pricing and customization options.

End-to-End Support

Better Services And Products from Support And Trust

Pre-sales


Consulting services

The company has a professional sales team that can provide customers with comprehensive product consulting services. Whether you have questions about the technical parameters, performance characteristics, or application areas of the equipment, we will patiently answer your questions to ensure that you purchase the most suitable product.

Solution Design

We offer customized solution design services, tailoring the most appropriate equipment configuration plans to meet our clients' specific needs. With extensive industry experience and technical expertise, we ensure the feasibility and efficiency of our solutions.

Factory inspection

We can arrange for customers to visit our company and production sites according to their needs, so that they can gain a more intuitive understanding of our products and production capabilities.

During sale


Delivery guarantee

We strictly adhere to the delivery dates specified in the contract for production and delivery to ensure that customers receive the required equipment on time. In the event of special circumstances, we will communicate with customers in a timely manner and make every effort to meet their needs.

Shipping Arrangements

We have established long-term partnerships with multiple logistics companies to provide our customers with safe and efficient transportation services.

After-sales


Warranty service

Our equipment warranty period is 12 months after successful installation and commissioning.

Installation & commissioning

The company has a team of experienced technical service personnel who can provide professional installation and commissioning services upon request to ensure that the equipment operates normally in the customer's factory.

Technical training

Provide customers with comprehensive technical training services to ensure that they are proficient in the use and maintenance of equipment.

Spare parts supply guarantee

Equipped with a specific list of wear parts, stock standard spare parts for various machine types to ensure timely replacement during repairs.

Continuous improvement and optimization

Regularly analyze and summarize customer feedback to identify shortcomings in products and services. Address these issues by organizing discussions among relevant departments to formulate improvement measures and optimization plans, continuously improving product quality and after-sales service levels to enhance customer satisfaction.

Customers' Questions and Answers About Paper Cup Machine

What is the maximum production speed for your rectangular paper cup forming machine?

The DISCOVER R-150 produces 80-100 rectangular cups per minute with stable precision. Its dual-servo drive system ensures consistent speed while maintaining structural integrity of non-round cups, making it ideal for high-volume rectangular paper cup production.

How does the machine ensure strong side seams and prevent leakage in rectangular cups?

We use precision overlap sealing with PID-controlled side heaters, maintaining ±2°C for uniform PE coating fusion. Each seam undergoes a pressure resistance test (withstand 0.4 bar) to ensure leak-proof rectangular paper cups for soups, desserts, and meal containers.

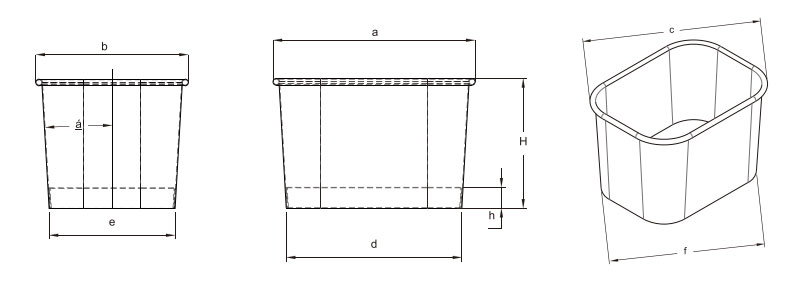

What are the adjustable dimensions for different rectangular cup sizes?

The machine accommodates lengths of 80-180mm, widths of 60-120mm, and heights of 40-150mm. Quick-adjust fixtures allow flexible rectangular cup manufacturing for various food packaging applications.

What is the typical ROI for a medium-scale rectangular cup production line?

Most clients achieve ROI within 10-14 months. Example: Producing 300,000 cups monthly at $0.03 profit per cup generates $9,000 monthly revenue. The machine's efficiency and low waste rate accelerate investment recovery.

How long does it take to change molds for different rectangular cup sizes?

With our modular mold system, changeover takes under 25 minutes. All forming, punching, and sealing components are pre-aligned, minimizing downtime during custom rectangular cup production runs.

What paper materials and GSM ranges can the machine process?

It handles 180-400 GSM PE-coated paper, including recycled fiber and double-walled materials. The robust feeding system ensures smooth processing of heavier stocks for rigid rectangular food containers.

How does the machine maintain consistent corner formation in rectangular cups?

The 4-point corner forming system with individual temperature control ensures sharp, uniform corners without material stretching or thinning. This prevents weak points in rectangular cup structural integrity.

Can the machine integrate with automatic stacking and packaging systems?

Yes. It features standard PLC interfaces (Ethernet/IP, Profinet) for seamless connection with downstream automation equipment, enabling fully automated rectangular cup packaging lines.

What maintenance is required to ensure long-term precision?

We recommend:

  • Daily: Cleaning forming mandrels

  • Weekly: Lubricating guide rails

  • Monthly: Checking servo alignment
    This simple regimen maintains ±0.2mm dimensional accuracy.

What technical support and warranty do you provide?

We offer 24-month warranty on critical components, on-site installation, and 24/7 technical support. Each customer receives comprehensive training for operation and maintenance of their rectangular paper cup forming system.
